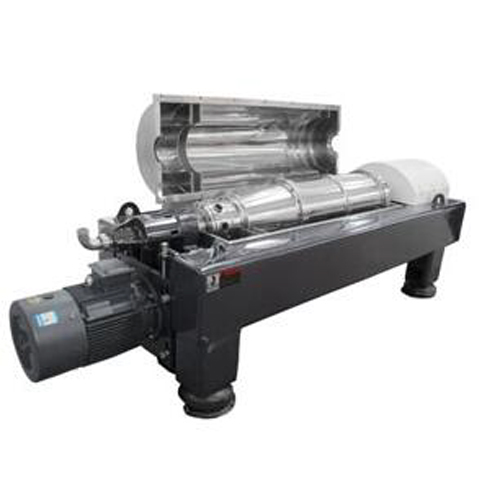

Description
Mainly Application:
- Separating and dewatering the industrial and domestic water.
- Wash, classification and dewatering for amylum.
- Dewatering for soybean, wheat.
- Dewatering for fish powder, fish meat.
- Dewatering for lees.
- Clarification for juice and dewatering for fruits.
- Separation and purification for animal and vegetable oil.
- Separation and purification for coal tar.
- Classification and dewatering for kaolin and graphite.
- Classification and dewatering for dyestuff and pigment.
- Float wash of extractive coal and dewatering of coal mud.
- Classification and dewatering for ore slurry.
Main Features:
- the drum and scroll conveyor are made of stainless steel resisting corrosion
- the scroll conveyor was coated with wearable alloy or welded with alloy plate(optional)
- stepless speed regulation for the bowl
- step or stepless speed regulation for scroll’s differential speed.
- Safety protection: rotation rate detection over, vibration protection, motor overload and overheat protection, protection for scroll when zero differential speed occurs
- For the highly sticky materials, it can add the hydraulic differential gear to stabilize
Technical Parameters:
Models |
Bowl Dia. (mm) |
Bowl Speed (r/min) |
Centrifugal Force |
Motor Power(kw) |
Weight (kg) |
Dimension(mm) |
220x660 |
220 |
4800 |
2840 |
7.8-11 |
900 |
1650x1150x700 |
220x880 |
220 |
4300 |
2280 |
7.5-11 |
1000 |
1850x1200x750 |
300x1140 |
300 |
3750 |
2370 |
11-15 |
1500 |
2100x1300x650 |
355x1160 |
350 |
4000 |
3100 |
22 |
2020 |
3067x920x1060 |
355x1460 |
350 |
4000 |
3100 |
22 |
2200 |
3365x920x1060 |
400x1200 |
400 |
3500 |
2750 |
18.5-22 |
2500 |
2400x1650x900 |
420x1680 |
420 |
3600 |
3000 |
22 |
2430 |
3320x1000x1060 |
450x1350 |
450 |
3500 |
3080 |
30 |
2230 |
3750x1090x1250 |
450x1800 |
450 |
3500 |
3080 |
30-37 |
3500 |
4200x1090x1250 |
530x1800 |
530 |
3200 |
3040 |
45-55 |
3920 |
4565x1230x1350 |
530x2120 |
530 |
3200 |
3040 |
45-55 |
4200 |
4885x1230x1350 |
730x2400 |
730 |
2400 |
2350 |
110-132 |
9300 |
5500x3200x1450 |
1120x3300 |
1100 |
1400 |
1200 |
160-200 |
15700 |
7000x3600x1780 |
