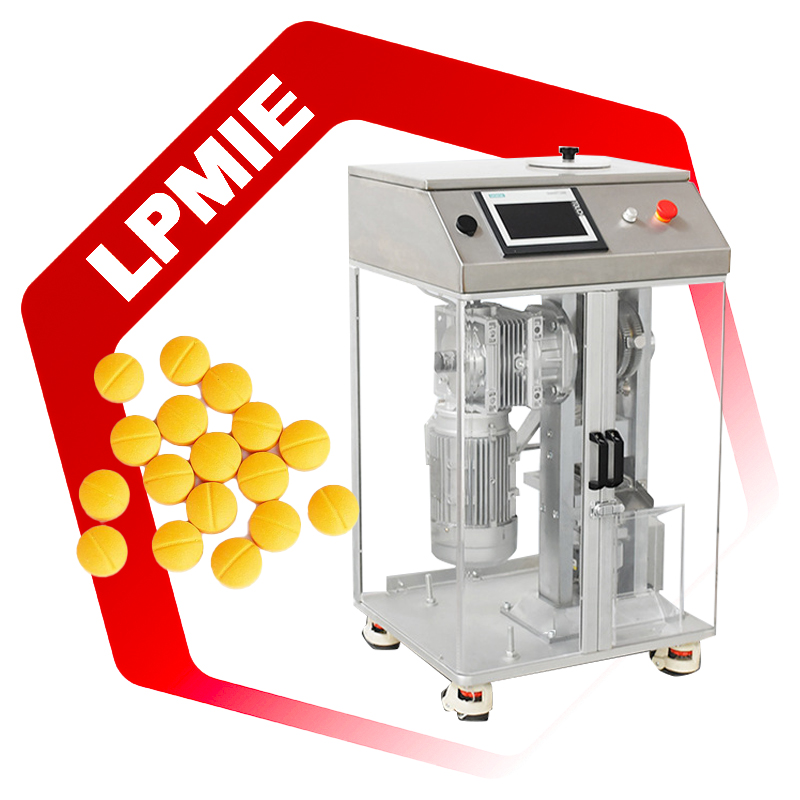

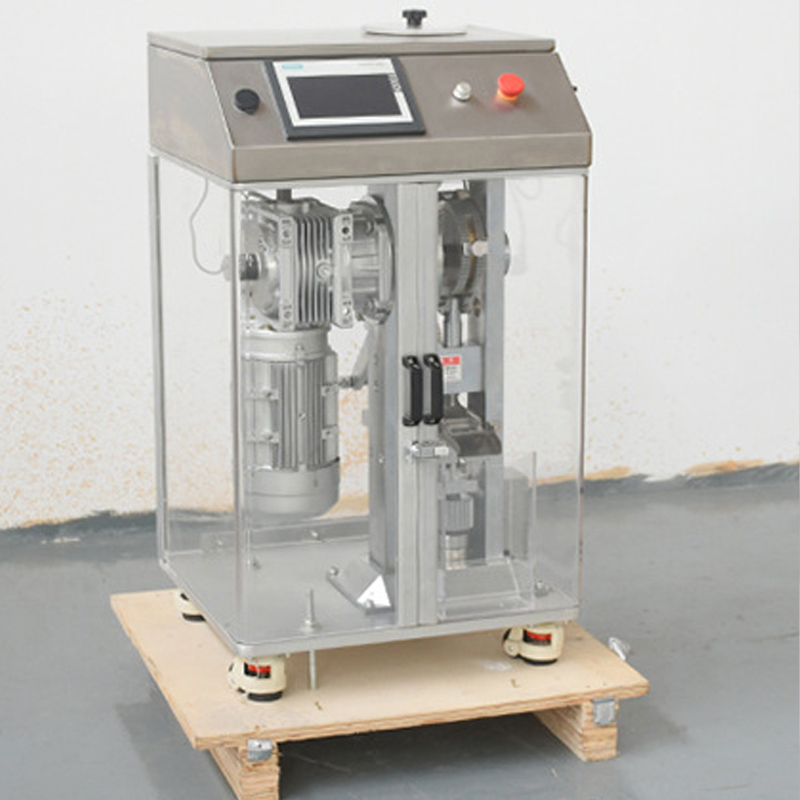

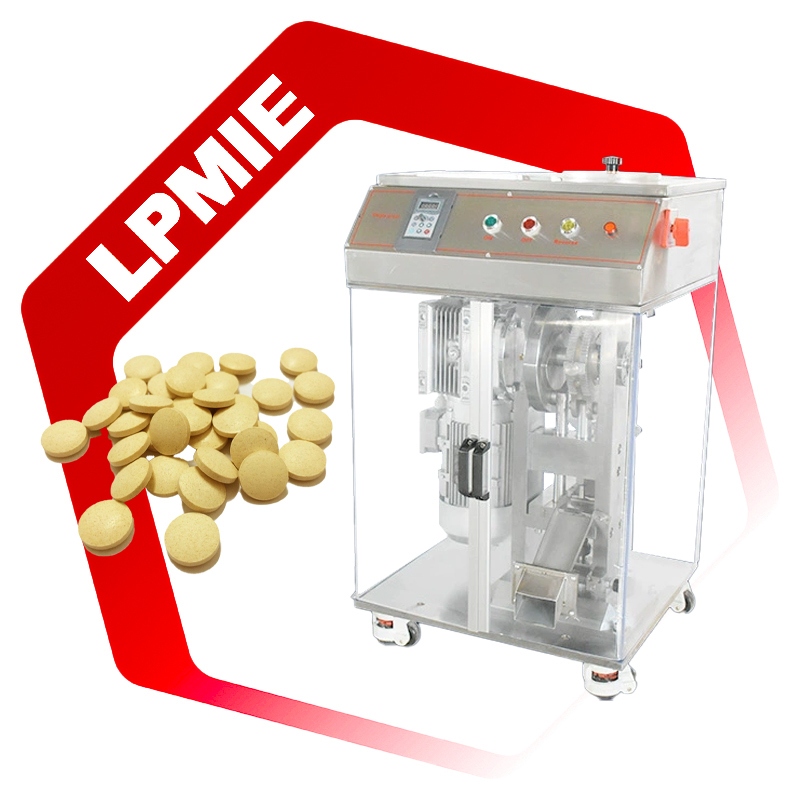

Product Overview

The DP Series Single Punch Tablet Press is an automatic tablet compression machine designed for pharmaceutical, chemical, food, electronic and laboratory applications. It is suitable for compressing powder and granular materials into tablets, while providing adjustable filling depth and tablet thickness for different production requirements.

Equipped with a PLC control system and touchscreen interface, the machine allows operators to monitor and adjust key parameters such as compression pressure, filling depth and tablet thickness. The system can also count tablets, set production quantities and automatically stop when the target output is reached.

The DP Series features overpressure alarm and automatic shutdown functions, as well as a reverse operation function to help reduce compression pressure when required. Its enclosed acrylic cover allows operators to observe the production process while helping prevent dust dispersion and cross-contamination.

Product-contact parts are made of 304 stainless steel, and the machine is designed to meet applicable pharmaceutical hygiene and GMP production requirements. With a maximum compression force of 60 kN, maximum tablet diameter of 25 mm and maximum tablet thickness of 7 mm, the DP Series provides a controlled solution for pharmaceutical R&D and tablet production.

Other Related Video

Why Choose the ZPW Double Press Rotary Tablet Press?

PLC & Touchscreen Control

Monitor and adjust compression pressure, filling depth and tablet thickness directly through the touchscreen interface.

Automatic Production Control

Set the target production quantity and allow the machine to automatically stop when the preset output is reached.

Pressure Monitoring & Protection

The system provides pressure display, overpressure alarm and automatic shutdown for controlled operation.

Enclosed Production Area

The transparent acrylic enclosure allows production to be observed while helping reduce dust dispersion and cross-contamination.

Data Export

Production-related data can be exported from the control system for record keeping and process management.

304 Stainless Steel Contact Parts

Product-contact components are made of 304 stainless steel for hygienic production and easier cleaning.

Typical Applications

The machine is widely used for manufacturing:

l Pharmaceutical tablets

l Vitamin tablets

l Calcium tablets

l Herbal medicine tablets

l Milk tablets

l Candy tablets

l Effervescent tablets

l Veterinary tablets

l Disinfectant tablets

l Catalyst tablets


Working Principle

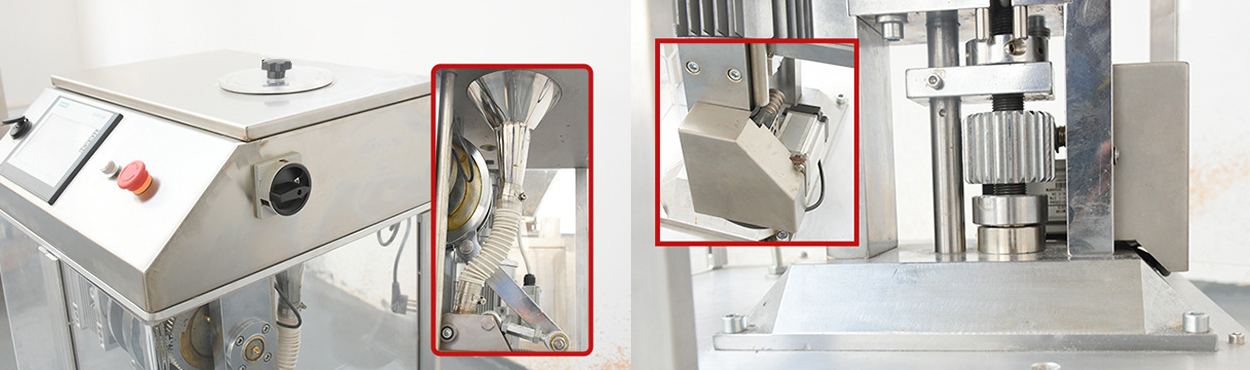

The DP Series Single Punch Tablet Press uses a single-punch compression process to form tablets from prepared powder or granular materials. The material is first fed into the die cavity to the required filling depth. The upper punch then applies compression to form the tablet, after which the finished tablet is ejected from the die.

During operation, the PLC control system monitors and displays key parameters such as compression pressure, filling depth and tablet thickness. Operators can adjust these parameters through the touchscreen interface without opening the machine enclosure.

Technique parameter

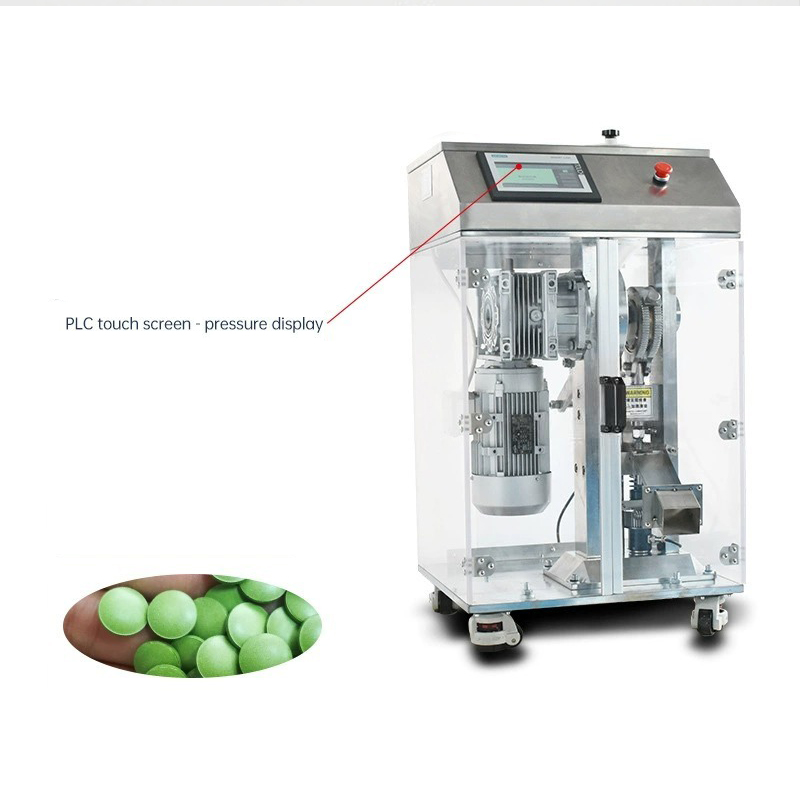

Control System

PLC Touchscreen Control

1. Pressure Display

Monitor compression pressure directly from the touchscreen interface.

2. Parameter Adjustment

Adjust tablet thickness, filling depth and compression pressure through the touchscreen.

3. Production Management

Set production quantity, count tablets and automatically stop the machine after reaching the preset output.

Safety & Protection

l Overpressure Alarm

l Automatic stop

l Reverse Operation

How to Choose the Right Model?

Generally speaking, the following parameters need to be confirmed for model selection:

①　Confirm whether your powder is suitable for tableting.

②　Diameter of round tablets (the maximum diagonal length shall be provided for special-shaped tablets).

③　Required tablet thickness.

④　Required production capacity.

Complete Tablet Production Solution

Suitable Materials

1. Dry Powder

Raw materials must be fully dry, with moisture content controlled below 5%.

2. Flowability

Materials shall have good flow performance. The ideal particle fineness for tableting ranges from 20 to 60 mesh, with a small proportion of fine powder mixed in for optimal results. If the material has poor flowability, granulation treatment is recommended. For detailed operations, please refer to our Granulation Guide.

3. Adhesiveness

Adhesiveness refers to the property that powder can agglomerate and bond together under external pressure. Materials lacking natural adhesiveness need binders to improve forming performance, such as maltodextrin, sugar, starch, microcrystalline cellulose, etc.

4. Low Oil Content

Excessive oil inside raw materials will severely hinder tableting forming. Therefore, the material cannot contain high levels of grease.

FAQ

Q1: What is the maximum compression force of the DP Series?

A1: The DP Series provides a maximum compression force of 60 kN.

Q2: What is the maximum tablet diameter?

A2: The machine can produce tablets with a maximum diameter of 25 mm and a maximum thickness of 7 mm.

Q3: Does the DP Series use PLC control?

A3: Yes. The DP Series uses a PLC control system with a touchscreen interface for monitoring and adjusting key operating parameters.

Q4: Can tablet thickness and compression pressure be adjusted from the touchscreen?

A4: Yes. Key parameters such as tablet thickness, filling depth and compression pressure can be monitored and adjusted through the touchscreen interface.

Q5: Does the machine automatically stop?

A5: Yes. Operators can set the target production quantity, and the machine can automatically stop after reaching the preset output.

Q6: Does the machine have overpressure protection?

A6: Yes. The DP Series provides an overpressure alarm and automatic shutdown function.

Q7: Is the production area enclosed?

A7: Yes. The machine uses a transparent acrylic enclosure that allows operators to observe production while helping reduce dust dispersion and cross-contamination.

Q8: Does the DP Series meet GMP requirements?

A8: The machine uses 304 stainless steel product-contact parts and is designed to meet applicable pharmaceutical hygiene and GMP production requirements.
