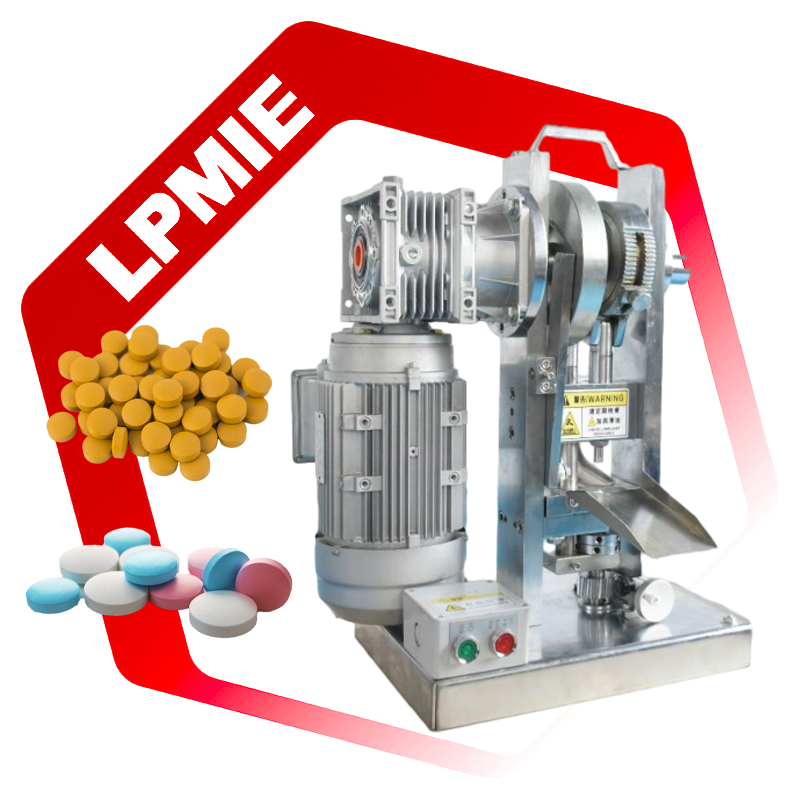

THDP Series Single Punch Tablet Press | LPMIE

Item No.: 00432
The THDP Series Lightweight Single Punch Tablet Press is designed for laboratory testing and small-batch production. With 30–60 kN compression force and tablet diameters up to 20 mm, it offers flexible configurations for different applications.
  • Capacity4000 pcs/h
  • Power0.75 kw
  • Weight40 kg
  • Dimension450*300*550 mm
  • Description Technical Specifications Buying Guide & Support
    Description

    Product Overview

    The THDP Series Single Punch Tablet Press is a lightweight and portable tablet compression solution designed for laboratory testing, product development and small-batch production. The series includes electric and manual/electric switchable configurations to meet different operating requirements.

    Available models provide 30–60 kN maximum compression force and support tablet diameters from 5 to 20 mm, depending on the configuration. The compact machine structure makes the THDP Series easy to transport and suitable for flexible use in different locations.

    The series includes THDP-3, THDP-5 and THDP-6 models with different compression capacities and production configurations. The THDP-6 features a worm gear drive and knurled pressure adjustment screw for smooth, low-noise operation and convenient tool-free pressure adjustment.

    Video


    Other Related Video

    Why Choose the THDP Series?

    Lightweight & Portable

    The compact structure and relatively low machine weight make the THDP Series easy to transport and carry.

    Flexible Model Selection

    Multiple configurations are available with 30–60 kN compression force and different tablet size ranges.

    Compact Design

    The small machine footprint makes the series suitable for laboratories, workshops and flexible production environments.

    Electric & Switchable Options

    THDP-3 is available in electric and manual/electric switchable configurations for different operating preferences.

    Large Tablet Capability

    The THDP-6 supports tablets up to 20 mm in diameter and 7 mm in thickness.

    Easy Pressure Adjustment

    The THDP-6 features a knurled adjustment screw that allows pressure adjustment without a wrench.

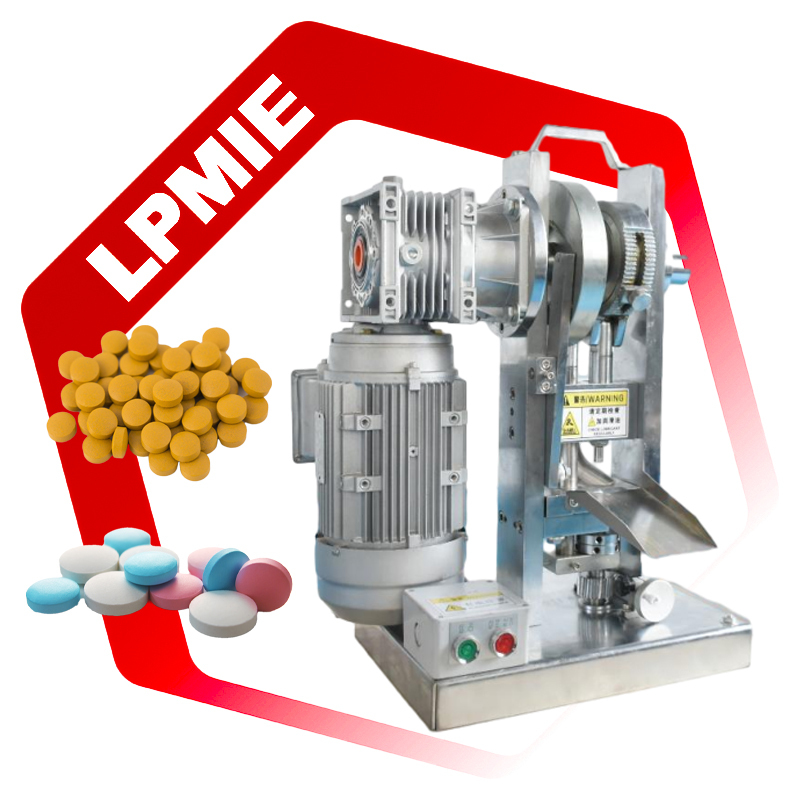

    Worm gear manual interchangeable integral single punch tablet press

    Typical Applications

    Industry

    Typical Products

    Pharmaceutical

    Tablets, OTC medicines

    Nutraceutical

    Vitamins, Minerals

    Food

    Candy Tablets, Milk Tablets

    Chemical

    Catalyst Tablets, Cleaning Tablets

    Education

    Laboratory Demonstration

    Working Principle

    The THDP Series uses a single-punch compression process to form tablets from prepared powder or granules. Material is fed into the die cavity, compressed by the punch and then ejected as a finished tablet.Compression parameters can be adjusted according to the selected model and tablet requirements. The compact design and different model configurations allow the THDP Series to adapt to laboratory testing, product development and small-batch production.

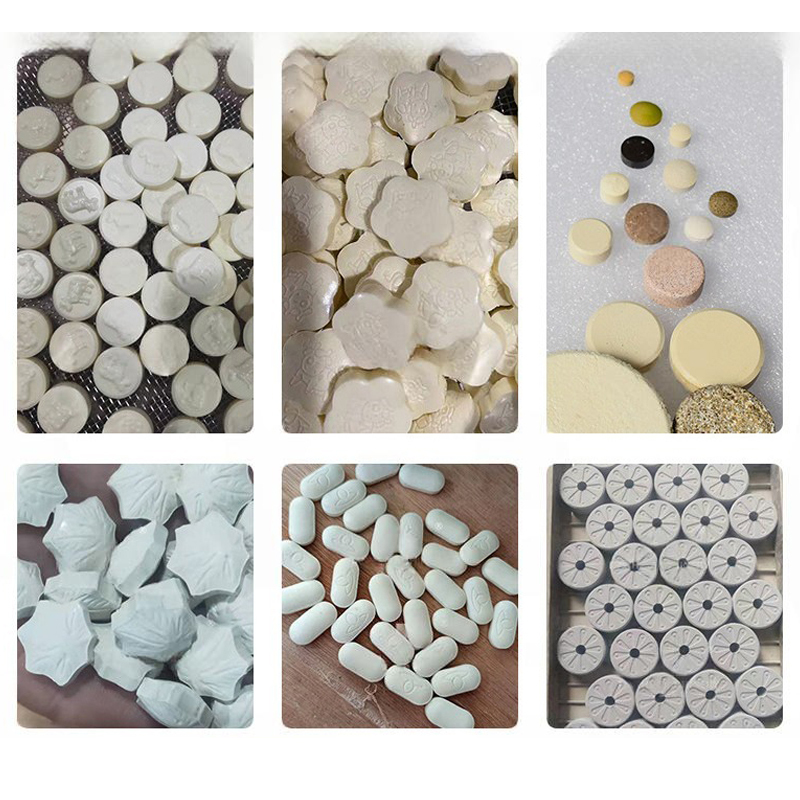

        Round tablet             Tablets with patterns             Vitamin C tablets

    Technical Specifications

    Technique parameter

    Parameter

    THDP-3 Electric

    THDP-3 Manual/

    Electric Switchable

    THDP-5

    THDP-6

    Max. Pressure (kN)

    30

    30

    50

    60

    Max. Tablet Diameter (mm)

    5–15

    12

    5–15

    20

    Max. Filling Depth (mm)

    18

    12

    0–18

    18

    Max. Tablet Thickness (mm)

    6

    6

    0–7

    7

    Production Capacity (tablets/h)

    4,000

    Approx. 4,000

    4,200

    4,000

    Motor Power (kW)

    0.75

    0.75

    0.75

    1.5

    Overall Size (mm)

    450 × 300 × 550

    450 × 300 × 550

    480 × 460 × 620

    500 × 410 × 680

    Net Weight (kg)

    50

    40

    55

    85

    Buying Guide & Support

    How to Choose the Right Model?

    Generally speaking, the following parameters need to be confirmed for model selection:

    ① Confirm whether your powder is suitable for tableting.

    ② Diameter of round tablets (the maximum diagonal length shall be provided for special-shaped tablets).

    ③ Required tablet thickness.

    ④ Required production capacity.
    How to measure special-shaped tablets, comparison of Φ10mm round tablet and rectangular tablet with 10mm maximum diagonal length

    Complete Tablet Production Solution

    Equipment

    Function

    Powder Mixer

    Uniform powder mixing

    Vacuum Feeder

    Automatic powder feeding

    Tablet Press

    Tablet compression

    Tablet Deduster

    Remove tablet dust

    Metal Detector

    Metal contamination detection

    Tablet Counting Machine

    Automatic tablet counting



    Suitable Materials

    Material

    Suitable

    Pharmaceutical Granules

    ✔

    Vitamin Powder

    ✔

    Calcium Carbonate

    ✔

    Herbal Extract Powder

    ✔

    Effervescent Granules

    ✔

    Candy Powder

    ✔

    Veterinary Formulations

    ✔



    1. Dry Powder

    Raw materials must be fully dry, with moisture content controlled below 5%.

    2. Flowability

    Materials shall have good flow performance. The ideal particle fineness for tableting ranges from 20 to 60 mesh, with a small proportion of fine powder mixed in for optimal results. If the material has poor flowability, granulation treatment is recommended. For detailed operations, please refer to our Granulation Guide.

    3. Adhesiveness

    Adhesiveness refers to the property that powder can agglomerate and bond together under external pressure. Materials lacking natural adhesiveness need binders to improve forming performance, such as maltodextrin, sugar, starch, microcrystalline cellulose, etc.

    4. Low Oil Content

    Excessive oil inside raw materials will severely hinder tableting forming. Therefore, the material cannot contain high levels of grease.

    FAQ

    Q1:What models are available in the THDP Series?

    A1:The THDP Series includes THDP-3 Electric, THDP-3 Manual/Electric Switchable, THDP-5 and THDP-6 models.



    Q2:What is the maximum compression force?

    A2:Depending on the model, the maximum compression force ranges from 30 to 60 kN.



    Q3: What is the maximum tablet diameter?

    A3:The maximum tablet diameter ranges from 12 to 20 mm, depending on the model. The THDP-6 supports tablets up to 20 mm.



    Q4: Which THDP model is suitable for larger tablets?

    A4:The THDP-6 is suitable for larger tablets, with a maximum tablet diameter of 20 mm and maximum thickness of 7 mm.



    Q5:Is the THDP Series portable?

    A5:Yes. The series features a compact and relatively lightweight design, making the machines convenient to transport and carry.



    Q6:Does the THDP-6 operate quietly?

    A6:The THDP-6 uses a worm gear drive designed for smooth and low-noise operation.



    Q7:Can pressure be adjusted without tools?

    A7:For the THDP-6, the knurled pressure adjustment screw allows compression pressure to be adjusted without a wrench.
