Tea-Infused Paper Cup Making Machine | LPMIE

Item No.: 00436
Two-station tea-infused paper cup making machine for 7–16 oz paper cups, with 1–20 g filling, precise heat sealing, pneumatic drive, and patented cup separation.
  • Capacity1200 cups/h
  • Power220V 50Hz
  • Weight60 kg
  • Description Technical Specifications Buying Guide & Support
    Description

    Product Overview

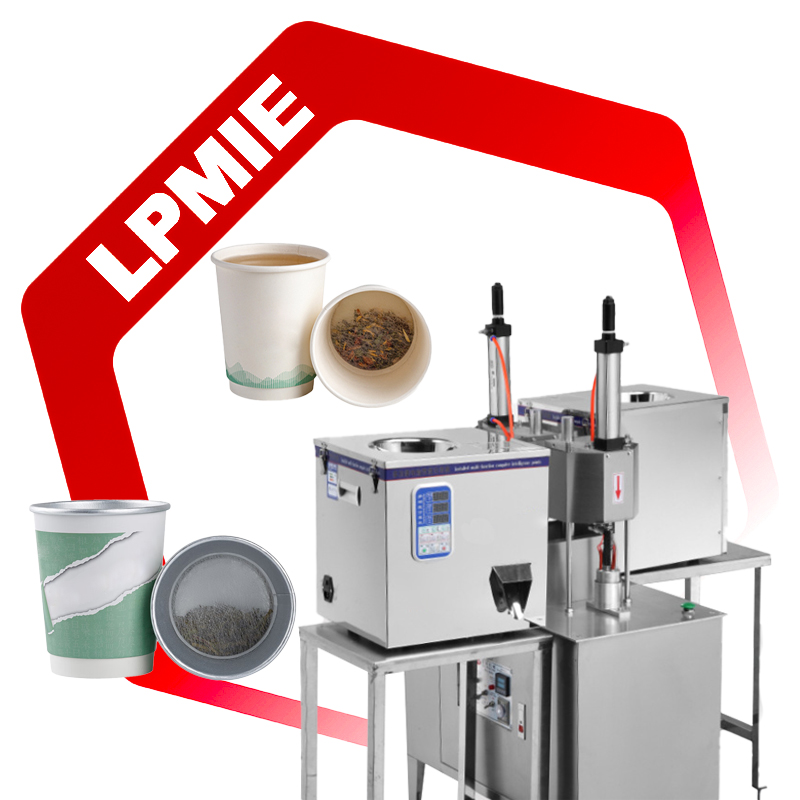

    The Tea-Infused Paper Cup Making Machine is a two-station solution for producing tea-infused paper cups by placing tea material inside disposable paper cups and sealing the opening with filter paper.

    The machine combines cup feeding, tea filling, heat sealing, and finished-cup separation in a compact production system. Pneumatic operation and electronic temperature control help maintain stable sealing performance.

    Its patented cup separation technology helps prevent finished cups from sticking to the hot-pressing head, supporting smooth operation and consistent production.

    The machine can handle approximately 1–20 g of tea per cup and is suitable for 7–16 oz paper cups. Non-standard cup sizes can be customized with corresponding tooling.

    Other Related Video


    Why Choose the Tea-Infused Paper Cup Making Machine?

    Two-Station Production

    The two-station configuration provides a compact solution for tea-infused paper cup production, with a rated capacity of up to 1,200 cups/h.

    Precise Tea Filling

    The machine supports approximately 1–20 g of tea per cup, suitable for tea dust, tea bags, original tea, and different tea shapes.

    Patented Cup Separation

    The patented separation structure helps prevent finished cups from sticking to the hot-pressing head, improving production stability.

    Pneumatic Drive

    Pneumatic operation provides the required pressing force for the cup sealing process while maintaining a relatively simple mechanical structure.

    Electronic Temperature Control

    Electronic temperature control helps maintain stable sealing conditions and consistent heat-sealing quality.

    Stainless-Steel Construction

    The stainless-steel structure provides corrosion resistance, convenient cleaning, and suitability for food and beverage production environments.

    Typical Applications

    The machine can be used for different tea-infused paper cup products, including:

    · Green tea

    · Black tea

    · Oolong tea

    · Herbal tea

    · Tea dust

    · Loose tea

    · Tea bags

    · Specialty tea blends

    · Customized tea cup products

    Typical users include:

    · Tea manufacturers

    · Tea packaging companies

    · Ready-to-drink tea brands

    · Hotels and catering businesses

    · Tea lounges

    · Promotional tea product manufacturers

    · Customized tea gift suppliers

    Working Principle

    The tea-infused paper cup production process generally follows:

    Paper Cup Feeding → Tea Filling → Filter Paper Positioning → Heat Sealing → Cup Separation → Finished Product Output

    First, empty paper cups are positioned in the working station.

    The required quantity of tea is then filled into each cup according to the preset filling requirement.

    After filling, filter paper is positioned over the cup opening and sealed using controlled heat and pressure.

    The finished cup is then separated from the sealing head and discharged for further handling or packaging.

    Tea filling process inside a disposable paper cup

    Technical Specifications

    Technique parameter

    Power Supply

    AC220 50HZ

    Filling Volume

    1-20g/cup

    (tea dust,teabag,original tea and different shape tea)

    Production Capacity

    1300cups/h (two relative working position)

    Filter Paper Specification

    Round diameter 77mm filter paper

    Paper Cup Type

    7-16oz Paper cup or other paper cup

    ( machine will be manufacture as per customer's cup requirement)

    Air pressure

    ‌≥0.6Mpa

     (it is supplied by buyer , air consumption 0.2m3/min)‌

    Weight

    68Kg

    Dimension

    460x800x1500 mm

    Note: Non-standard paper cup sizes can be customized with corresponding molds/tooling.

    Buying Guide & Support

    How to Choose the Right Tea Cup Packaging Machine?

    Before selecting a tea-infused paper cup machine, confirm the following:

    1. Paper Cup Size

    The standard configuration supports 7–16 oz paper cups. If your cup size falls outside this range, customized tooling may be required.

    2. Tea Filling Quantity

    The standard filling range is approximately 1–20 g per cup. The actual filling performance should be confirmed according to the tea material and target weight.

    3. Tea Material

    Tea dust, loose tea, tea bags, and different-shaped tea materials can have different feeding characteristics. Testing the actual tea material is recommended before final equipment selection.

    4. Production Capacity

    The two-station configuration is rated at approximately 1,200 cups/h. Production requirements should be considered together with filling accuracy, sealing quality, and operating conditions.

    Suitable Materials

    The machine can be used with different tea materials, including:

    · Fine tea dust

    · Loose tea

    · Original tea leaves

    · Tea bags

    · Herbal tea

    · Specialty tea blends

    Different materials may have different flowability and filling characteristics, so actual material testing is recommended for customized applications.

    FAQ

    What is a tea-infused paper cup?

    A tea-infused paper cup is a disposable paper cup containing a measured quantity of tea material and sealed with filter paper. The consumer can prepare the tea directly using the cup.

    What is the capacity of the machine?

    The two-station configuration has a rated capacity of approximately 1,200 cups/h.

    How much tea can each cup contain?

    The filling range is approximately 1–20 g per cup, depending on the tea material and filling requirements.

    What paper cup sizes are supported?

    The standard configuration is designed for 7–16 oz paper cups. Non-standard cup sizes can be customized with suitable tooling.

    Can different types of tea be used?

    Yes. The machine can handle tea dust, loose tea, tea bags, original tea, and different-shaped tea materials. Actual performance depends on the characteristics of the tea.

    Is the sealing temperature adjustable?

    Yes. The machine uses electronic temperature control to maintain the required heat-sealing conditions.
