Tubular Centrifuge
Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge Tubular Centrifuge
  • Tubular Centrifuge
  • Tubular Centrifuge
  • Tubular Centrifuge
  • Tubular Centrifuge
  • Tubular Centrifuge

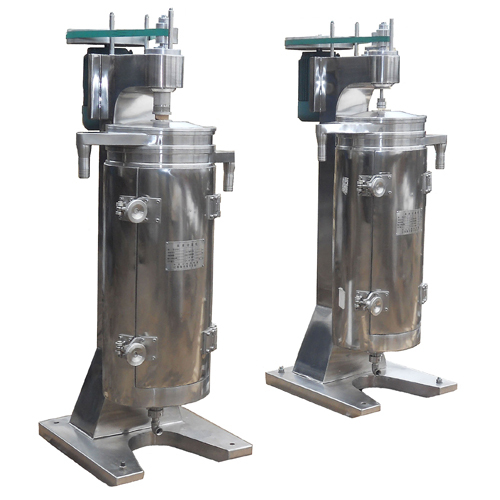

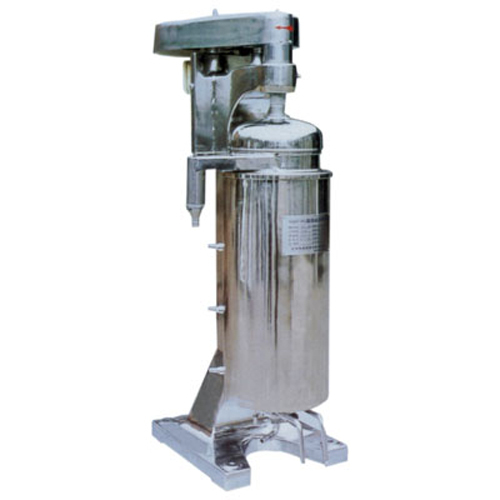

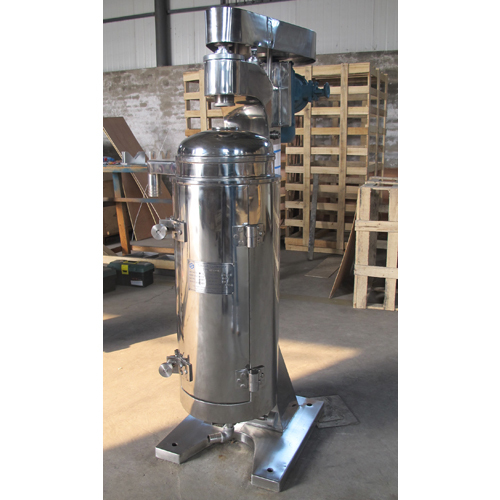

Tubular Centrifuge

Item No.: LPMIE110
This kind of centrifuge is used for separating various emulsion, especially for virgin coconut oil separation
  • ModelGF / GQ
    • Request Quote PDF Format
    Description
    Description


    Specifications

    This kind of centrifuge is used for separating various emulsion, especially for virgin coconut oil separation.

    Main Purposes

    GF/GQ Model Tubular Separatoris used for separating various emulsion, especially for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as transformer oil, turbine oil, lubricant, fuel oil, dye, fat, sapnificatio and various micropowder and for purifying span-80 liquid separating various oral liquid and medical liquid and "920" and plasma and biologic medicine, extracting plasma from animals' blood, refining phosphatide of bean, etc. and treating sewage and separating oil and water.
    Type GQ separator is used for separation of various suspension which is difficult to be separated especially for separation of solid-liquid suspension which has low concentration, high viscosity, small granularity and very small difference of solid-liquid gravity, such as clarification of various oral liquid, desludgemetn of coal tar and graphite, extraction of protein, seaweed and jelly, refinement molasses, separation of blood and settlement of vaccine hypha and various dextroses and purifying paint, dye, various resin and rubber solution molasses and refinement or vegetable oil.

    Working Principle

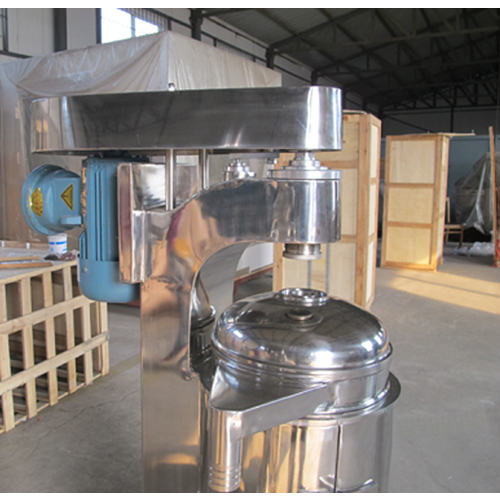

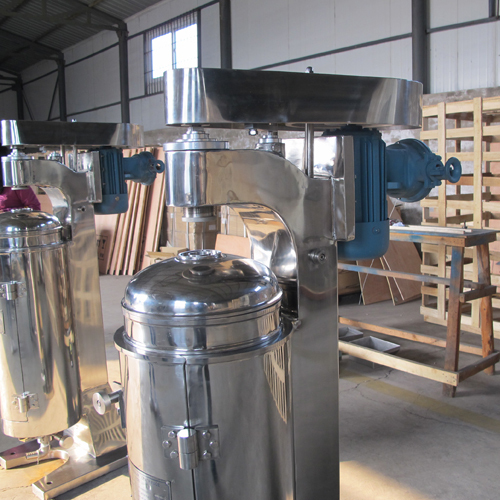

    This kind of separator is consisted of main body, driving device, bowl, collecting pan and liquid-in bearing seats. The upper part of the bowl is flexible mainshaft and the lower part of the bowl is damp floating bearing. The mainshaft connected with a driven wheel by the buffer coupling seat, power transmitted by the motor to the drive wheel through the transmission belt and the tensioner to make the bowl rotate around its own axis at a high speed therefore it forms a strong centrifugal force field. The product sprays into the liquid inlet by the bottom liquid inlet; liquid is forced by centrifuge force to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

    Technical Specification
    Item Unit GQL75 GQ105A GF105A GQL125 GQL150
    Bowl Inner Diameter      mm 75 105 105 124 142
    Bowl Effective Height    mm 430 730 730 735 700
    Bowl Settling Volume      L 2 5.5 5.5 7.4 10
    Bowl Rotating Speed    r/min 20000 16000 16000 15000 14000
    Bowl Centrifugal Force   16770 15025 15025 15500 15570
    Nozzle Diameter        mm 2,3,5 4,6,8, 4,6,8, 3,5,7 8,10,12
    Inlet Pressure          Mpa >0.05 >0.05 >0.05 >0.05 >0.05
    Working Capacity        kg/h ~500 ~1000 ~1200 ~2000 ~3000
    Motor Power            kw 1.5 2.2 2.2 4.0 3.0
    Motor Speed          r/min 2840 2880 2880 2890 2880
    Cooling Area            m2 0.5 *** *** 1.3 0.553
    Cooling Pressure        Mpa 1 *** *** 1 <2.4
    Net Weight              kgs 300 450 450 500 500
